Details:

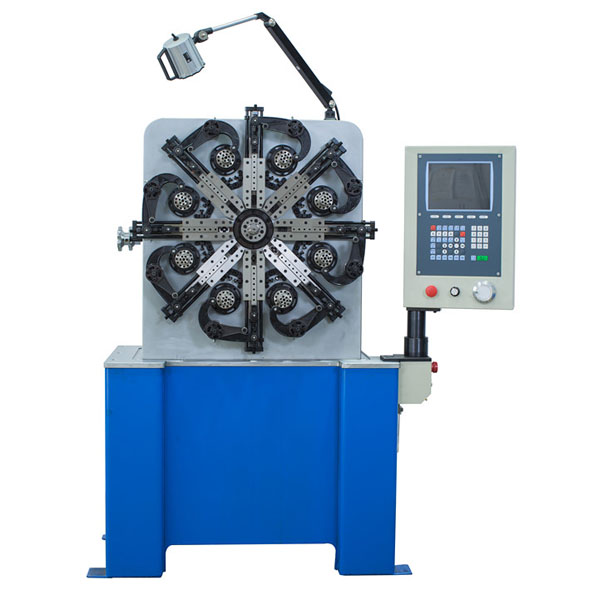

1. XD-CNC20 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. mechanical part has eight sets of sliding blocks.

2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
3. XD-CNC20 universal spring machine is equipped with XinDing spring machine controller. the controller system can save 1000 file numbers. Axis location, feeding data, production speed and production output are displayed on the screen. the program data can be set and changed easily.
4. The spring machine rotation core system is installed on the axis. the axis can rotate leftwards and rightwards. the rolling axis is installed on the sliding house. the cam drives it rotate 360°, also can control direction action or designated moves back and forth.
5. Optional accessories: Cutting tools, rolling axis, pneumatic sensor device, safety door.

Product Range:
This CNC spring machine manufacture various types of ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.

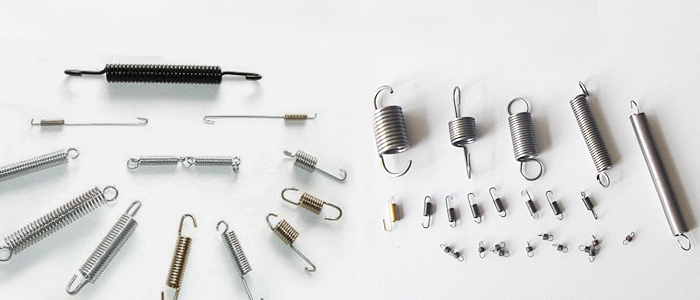

Sample:

Technical Parameter:
