Details:

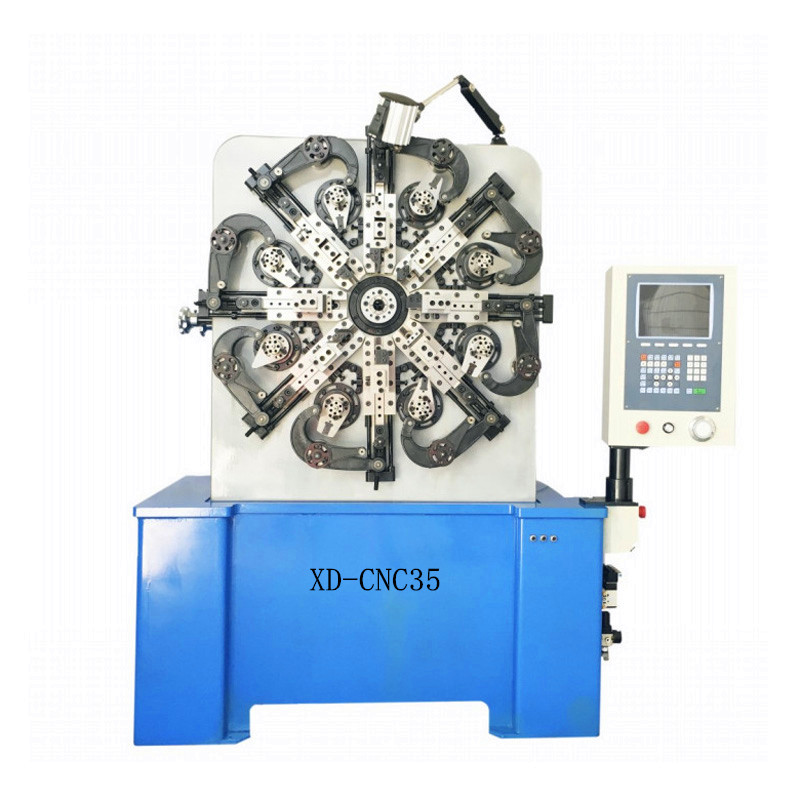

1. XD-CNC35 spring machine consists of cam axis, wire feeding axis, rotation core axis and optional spinner axis.

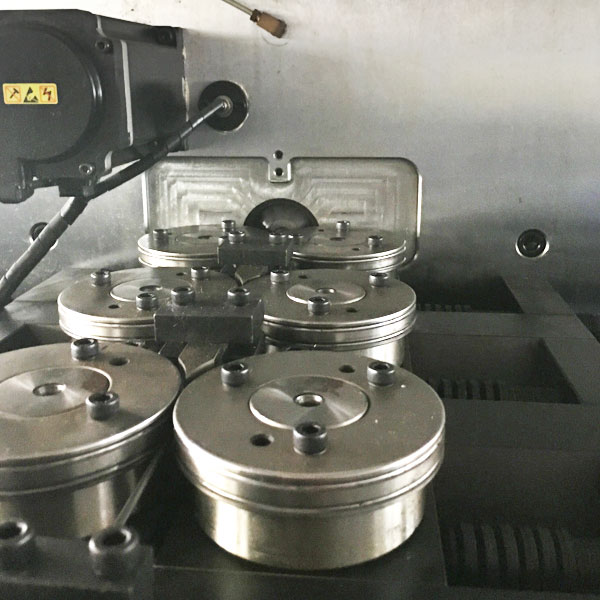

2. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally three groups are installed.

3. XD-CNC35 universal spring machine is equipped with Xinding spring machine controller. The controller system can save 1000 file numbers. axis location, wire feeding data, production speed and products output are displayed on the screen. The program data can be set and changed according your demand in actual operation.

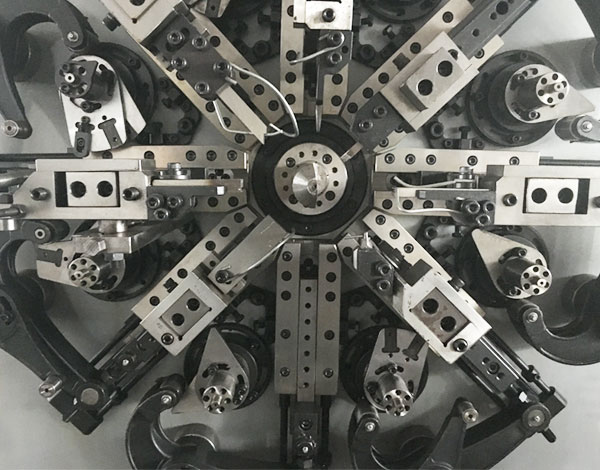

4. The spring machine rotation core system is installed on center of machine board, it rotates both  leftwards and rightwards. The rolling axis is installed on the sliding cabinet.

5. Optional accessories: cutting tools, spinner axis, pneumatic sensor device, optional safety door.

Product Range:

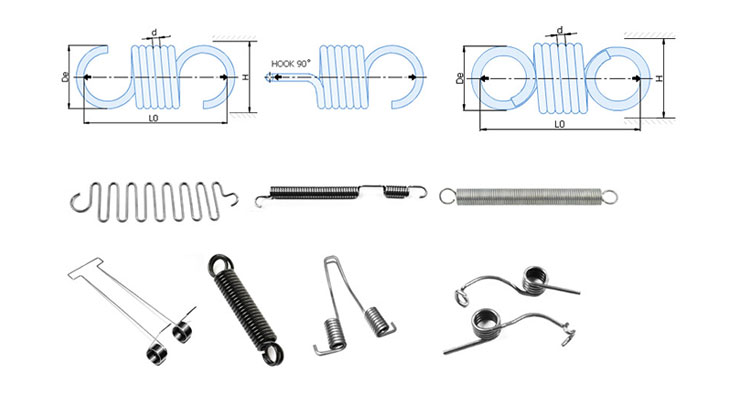

This CNC spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.

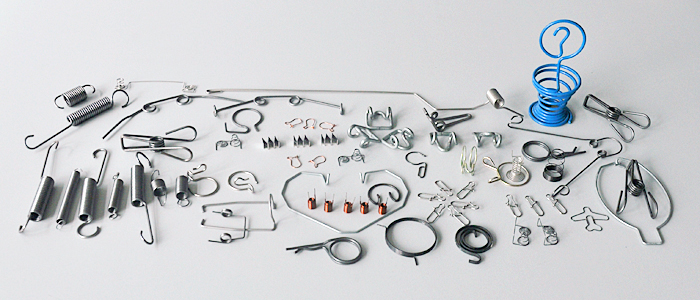

Sample:

Technical Parameter:
