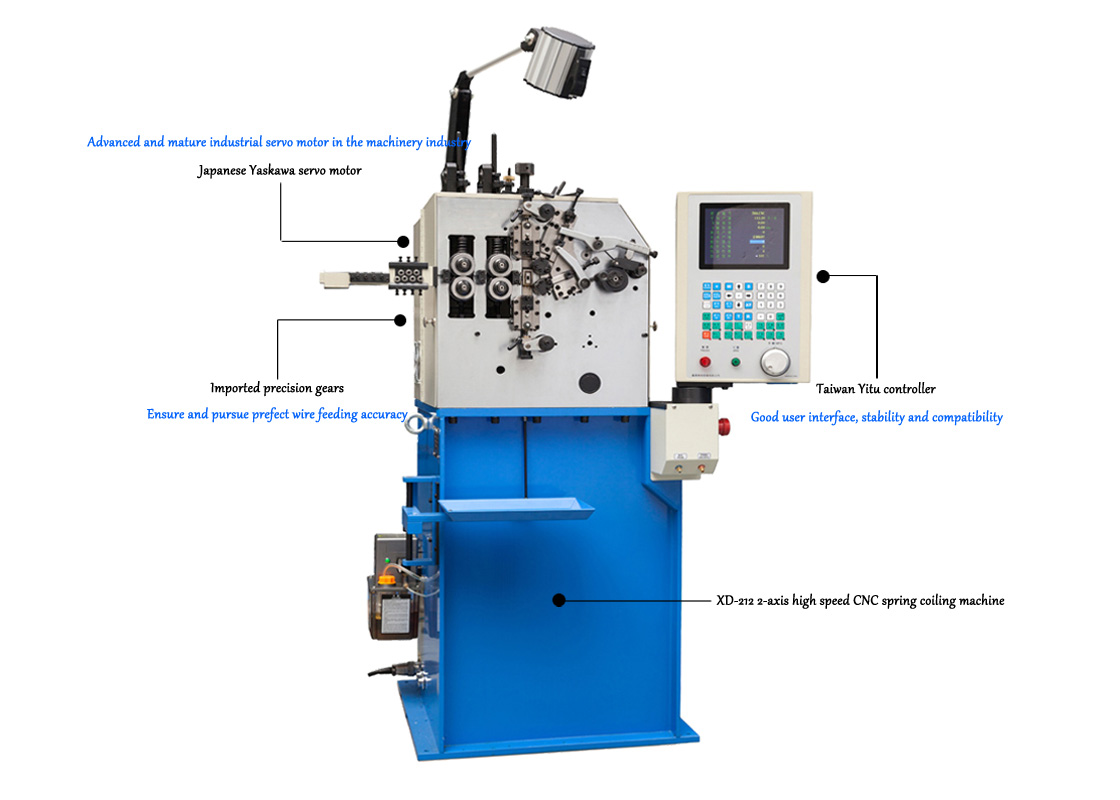

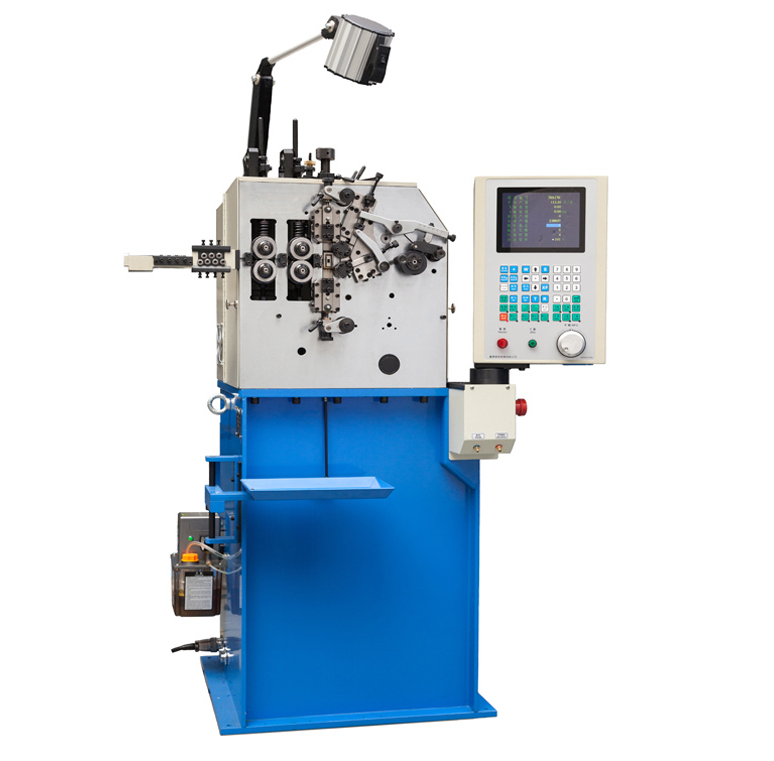

XD-212 Spring Machine
Description：XD-212 spring machine is applicated to wire diameter range 0.3-1.2mm.
Production features:
- It combines precision CNC controlled servo-motion system and conveniences of mechanization.
- It is suitable for various kinds of spring products with wire diameter 0.3--1.2mm through a simplified setup and programming procedure.
- Servo motion system and servo drive controlled.
- 5.7″control panel, easy to operate.
- Cam can be moved clockwise or anti-clockwise; wire feed length can be changed while running the machine.
- Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
- Computer can automatically decelerate according to the timing when the probe should be used.
- Production speed can be increased or decreased at any time running the machine.
Technical Parameter:
| Model: | XD-212 |
| Wire diameter: | φ0.30～1.20mm |
| Axes: | 2 axes |
| Maximum Outside Diameter: | 30mm |
| Maximum Feeding Length: | unlimited |
| Maximum Manufacture Speed: | 550pcs/min |
| Feed Speed: | 300m/min |
| Memory Number: | 1000PCS |
| Wire Feed Servo Motor: | 1.5KW |
| Cam Servo Motor: | 1.5KW |
| Power AC: | 3-Phase 220V |
| Dimensions (L*D*H): |
700X550X1600mm |
| Wooden Case Dimension: | 1000x1050x1600mm |
| Machine Weight: | 500Kg |
| Gross Weight: | 550Kg |
