XD-1120 Camless Spring Machine
Description：Xinding spring machinery, Springs machine, XD-1120 Spring Machine, 0.3-2.5mm springs making.

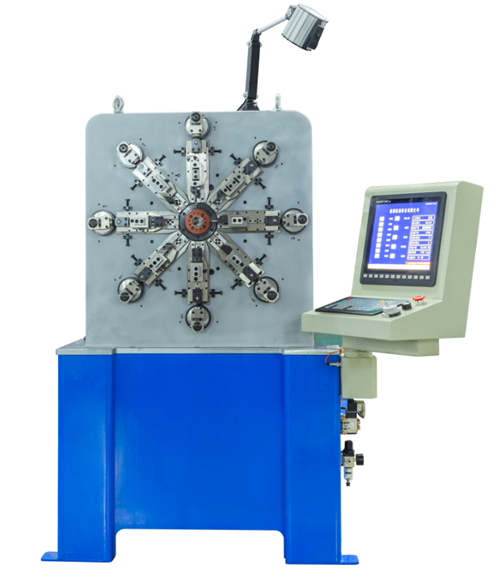

XD -1120 Eleven axis camless CNC Spring Forming Machine for forming wire

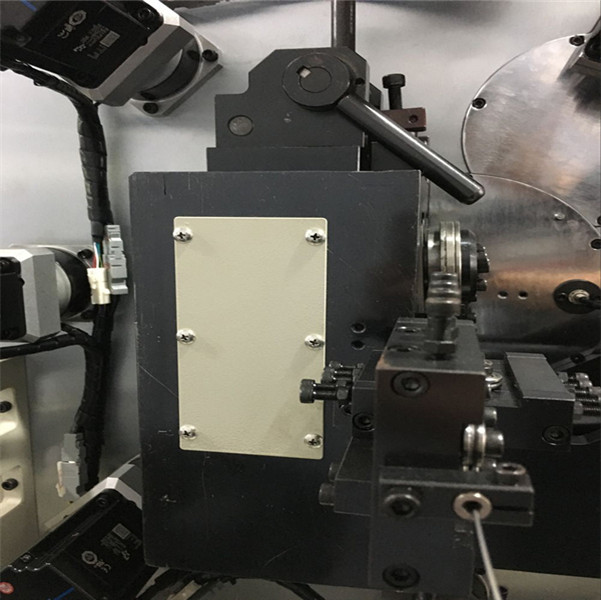

XD-1120 spring forming machine adopts unique camless and rocker armless design, knife shelf is controlled by 8 pairs of independent servo motors, sliding arm adopt two way railing structure.
The axis are, sliding arm axis*8(A1-A8), wire feeding axis*1(Y), quill rotary axis*1(Z), spinner axis*1(U).
Technical parameters:
| 1.Axis count: | 11 axis | |
| 2.Wire size: | ￠0.20~2.3mm | |
| 3.Outside diameter: | ￠50mm | |
| 4.Wire feed motor: | 2.7kw | |
| 5.Sliding arm motor×8: | 0.75kw | |
| 6.Quill motor: | 0.75kw | |
| 7.Spinner motor: | 0.4kw | |
| 8.Computer display: | Chinese/English | |
| 9.Max wire feed: | 99999.99mm | |
| 10.Min wire feed: | 0.02mm | |
| 11.Computer memory: | 500 programs | |
| 12.Dimensions: | 1450*550*1650mm | |
| 13.Weight: | 850kg | |
| 14.Power ac: |
3-phase 220v 50hz |
|
