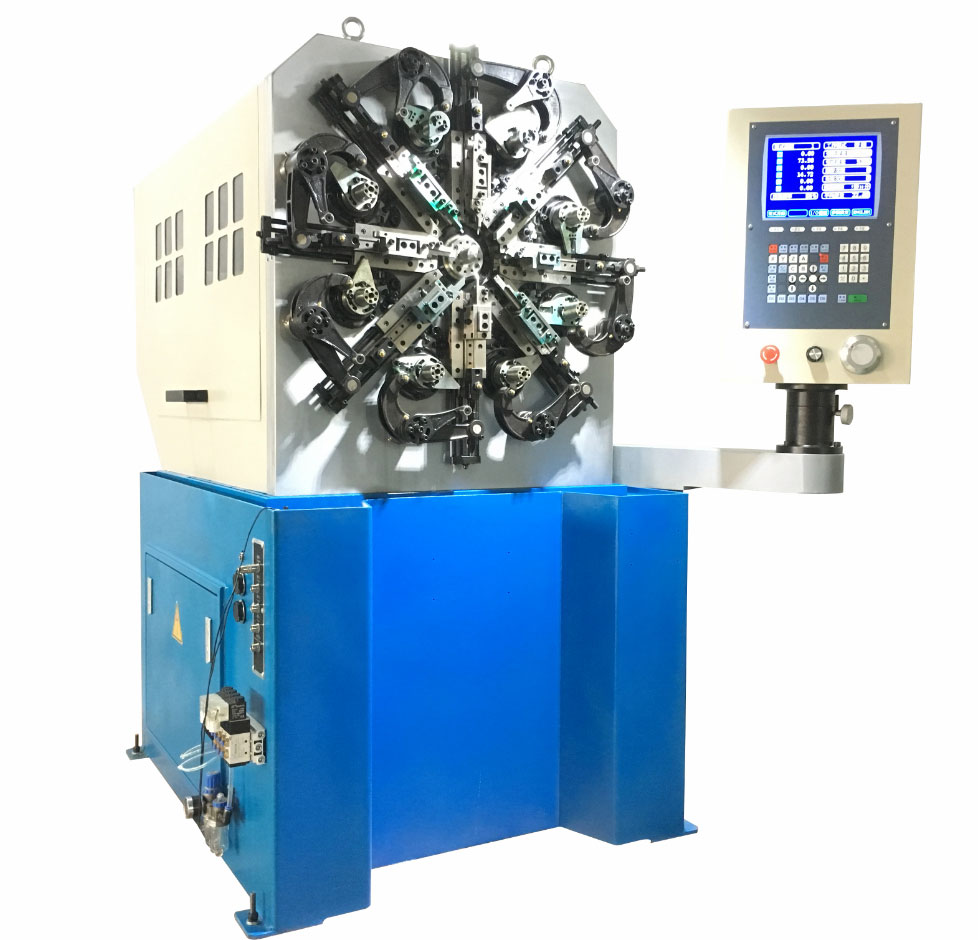

XD-CNC20W Spring Machine
Description：Xinding spring machinery, Springs machine, XD-CNC20W Spring Machine, 0.3-2.5mm springs making.
Details:

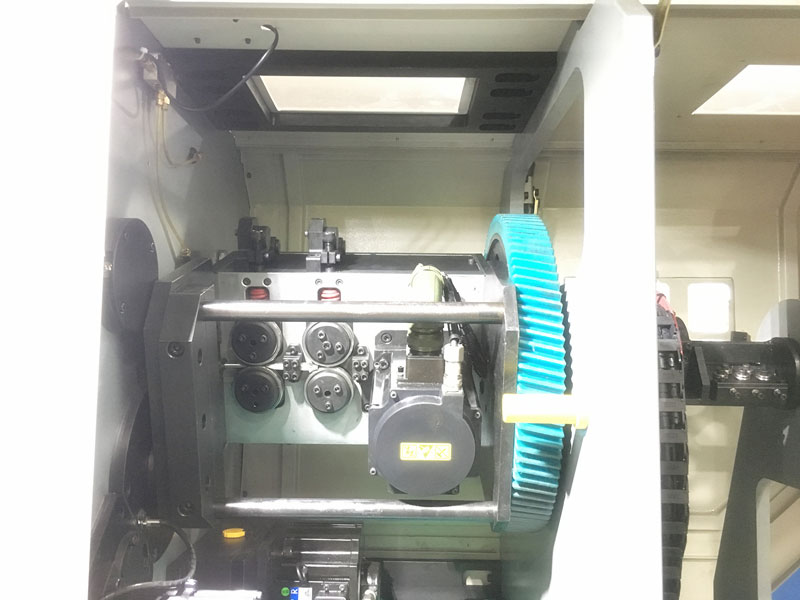

1. XD-CNC20W spring machine consists of cam axis, wire feeding axis, wire rotation, quill and spinner axis. mechanical part has eight sets of sliding blocks.
2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
3. XD-CNC20W CNC spring machine is equipped with XinDing 5 axis spring machine controller. which can save 1000 files, axis location, feeding data.wire rotation position, production speed and production output are displayed on the screen.
4. With wire rotation, easier to control the natural force value of wire material.
Product Range:

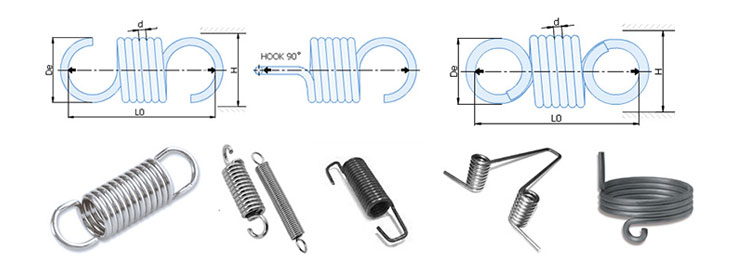

This CNC spring machine manufacture various types of ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.
Sample:
Technical Parameter:
| Model: |
XD-CNC20W |
|
Wire diameter: |
φ0.3～2.5 mm |
|
Axes: |
5 axes |
|
Maximum Outside Diameter: |
￠50mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed: |
200m/min |
|
Memory Number: |
1000pcs |
|
Wire Feed Servo Motor: |
2.7kw |
|
Cam Servo Motor: |
2.7kw |
|
Quill Servo Motor: |
1kw |
| Wire Rotation Motor: | 2.7kw |
|
Spinner Motor: |
0.4kw |
|
Power AC: |
3-phase 380v |
|
Dimensions (L*D*H): |
1400X1000X1700mm |
|
Wooden Case Dimension: |
1700x1200x1950mm |
|
Machine Weight: |
1200kg |
|
Gross Weight: |
1500kg |
