Details

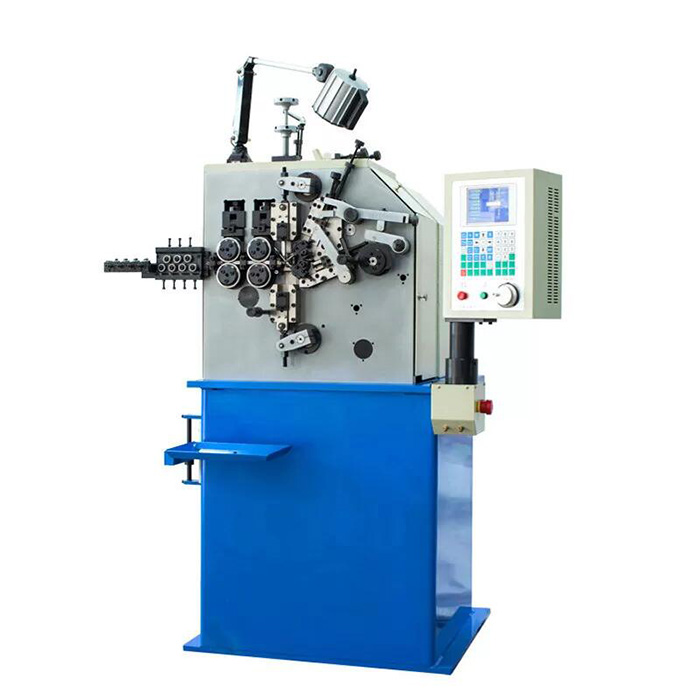

1. XD-212 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. each action from the machine are controlled by its CNC center.
2. The compression spring machine pitch, outside diameter and cutter are commanded by cam motor. while wire feeding is controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the machine cabinet easily and flexibly.
4. Servo motion system and servo drive controlled,  5.7" control panel, easy to operate.
5. Cam can be moved clockwisely or anti-clockwisely, wire feed length can be change while running the machine.

6. Computer automatically detect temperature of  the motor and slow down running speed to protect the motor from overheating.

7. Computer automatically decelerate according to the timing when the probe should be used.
8. Production speed can be increased or decreased at any time running the machine.
9. Optional accessories: torsion spring attachment device, oil seal device, pneumatic sensor device, spring length gauge.

Product Range:

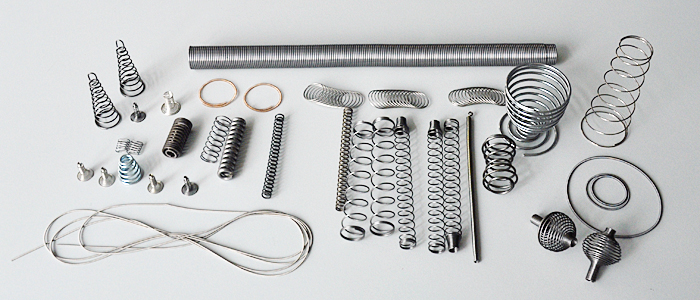

This compression spring machine make various kinds of compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as some simple torsional springs.

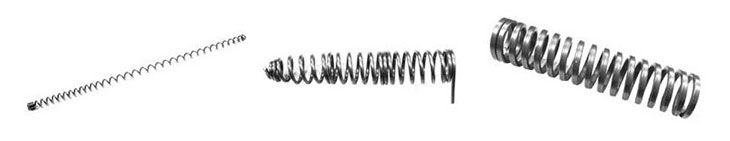

Sample:

Technical Parameter:
