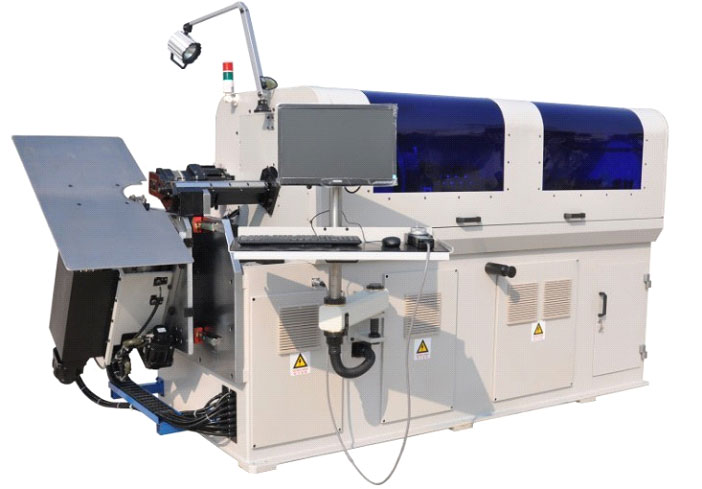

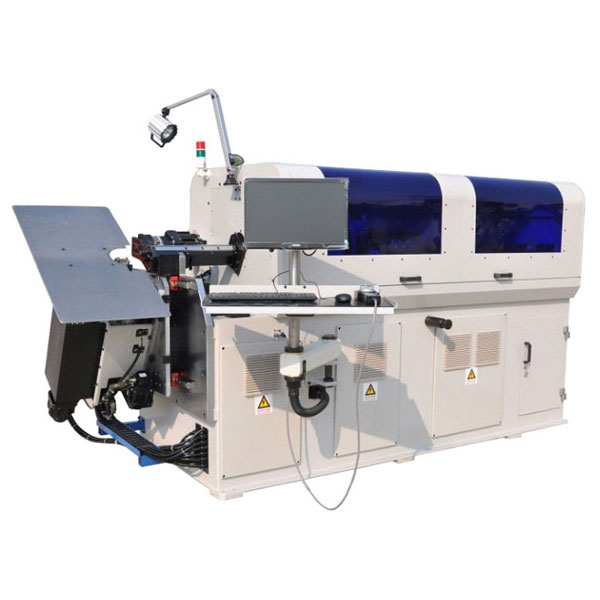

XD-WF608 wire forming machine
Description：XD-WF608 coiling spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types: extruding, punching and molding.
Details
1. XD-WF607 is a seven axis wire forming for making all kinds of wire forming products.
2. XD-WF607 adopts advanced computer technology.
3. Optional accessories: bending tools, rolling axis, safety door.
Product Range:

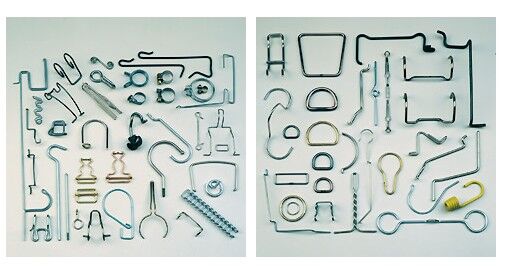

Wire forms products from all kinds of materials.
Technical Parameter
| Model: |
XD-WF608 |
|
Wire diameter: |
Ø2.0-6.0mm（soft wire） |
|
Max. wire feeding speed: |
54m/min |
|
Dimensions (L*D*H): |
3333×2035×1620mm |
|
Machine Weight: |
3000KG |
|
Distance between the bending head and machine body: |
594mm |
Axes Feature
|
Bending (inside): |
1.3KW |
|
Bending (outside): |
1.3KW |
|
Bending(U/D): |
1.3KW |
|
Bending(L/R): |
1.3KW |
|
Cutting axis: |
1.3KW |
|
Support table U/D axis: |
0.85KW |
|
Wire Feed axis: |
3.0KW |
|
Rotating Wire axis: |
3.0KW |
