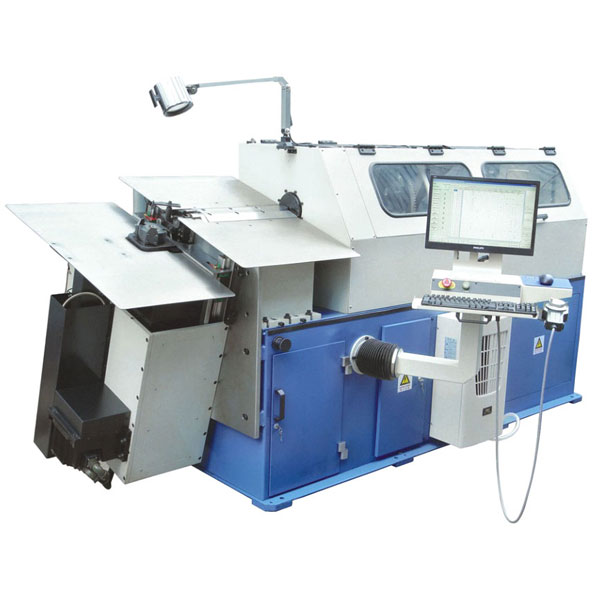

XD-WF607 wire forming machine
Description：XD-WF607 seven axis universal wire forming machine
Details

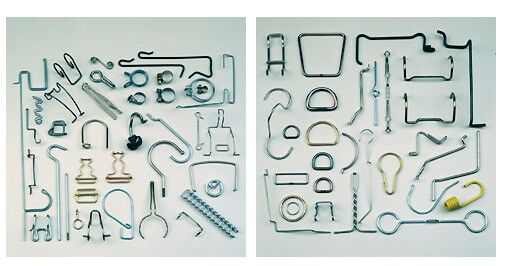

1. XD-WF607 is a seven axis wire forming for making all kinds of wire forming products.
2. XD-WF607 adopts advanced computer technology.
3. Optional accessories: bending tools, rolling axis, safety door.
Technical Parameter
| Model: |
XD-WF607 |
|
Wire diameter: |
Ø3-8mm（soft wire） |
|
Max. wire feeding speed: |
70m/min |
|
Dimensions (L*D*H): |
3300×1660×1600mm |
|
Machine Weight: |
3000KG |
|
Distance between the bending head and machine body: |
700mm |
Axes Feature
|
Bending Pin axis: |
3.0KW |
|
Support Pin axis |
3.0KW |
|
Bending Head U/D axis: |
3.0KW |
|
Support Table U/D axis: |
3.0KW |
|
Cutting axis: |
3.0KW |
|
Wire Feed axis: |
4.4KW |
|
Rotating Wire axis: |
3.0KW |
