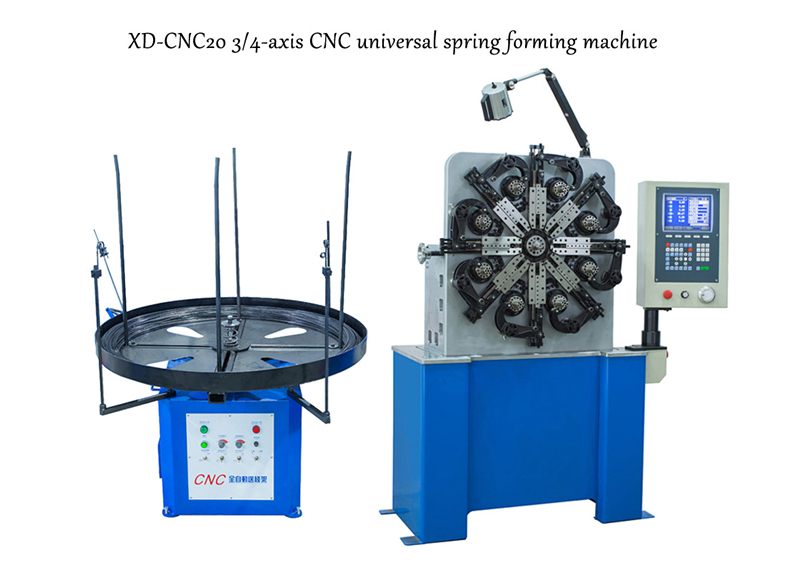

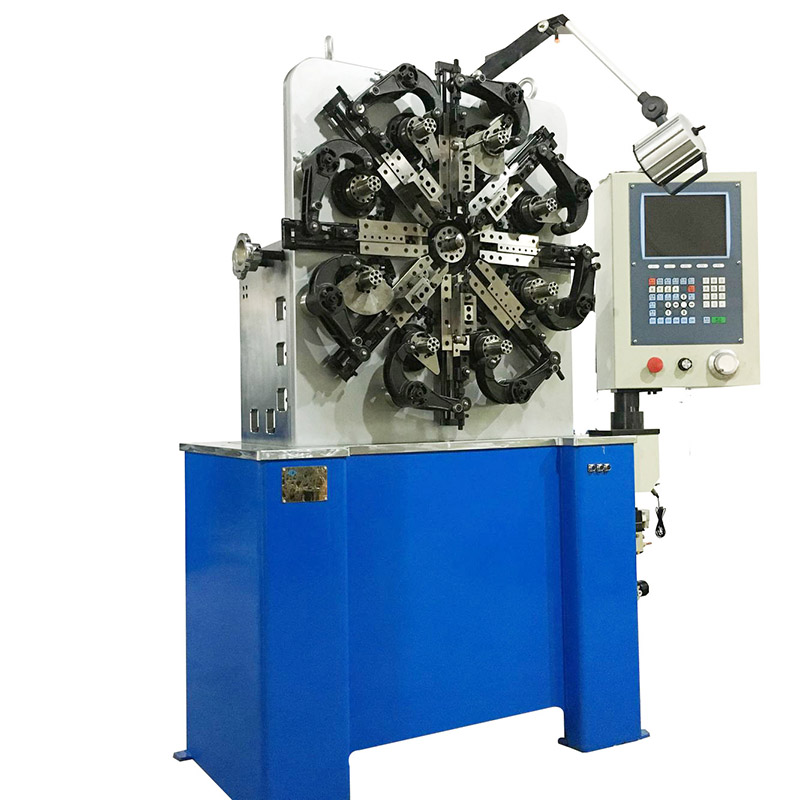

XD-CNC20E Spring Machine
Description：XinDing spring machinery, Springs machine, XD-CNC20E Spring Machine, 0.3-2.3mm springs making.
Machine Details:

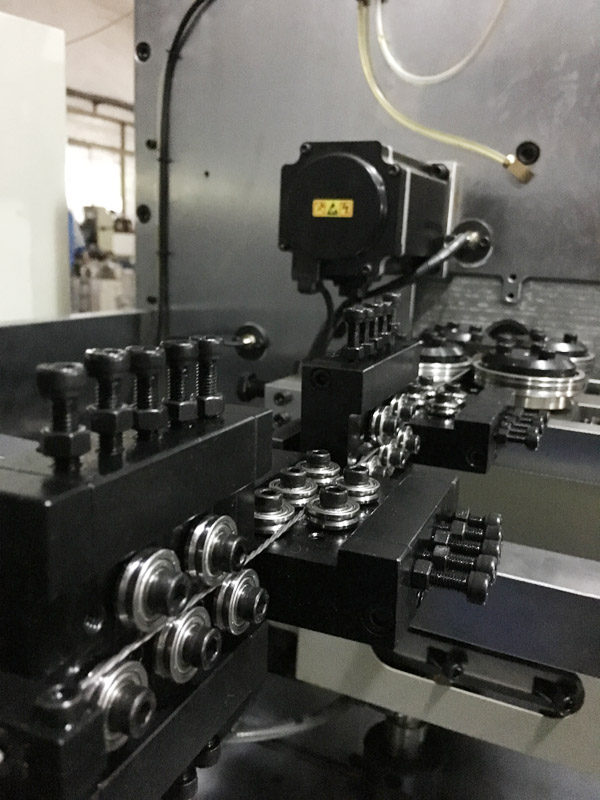

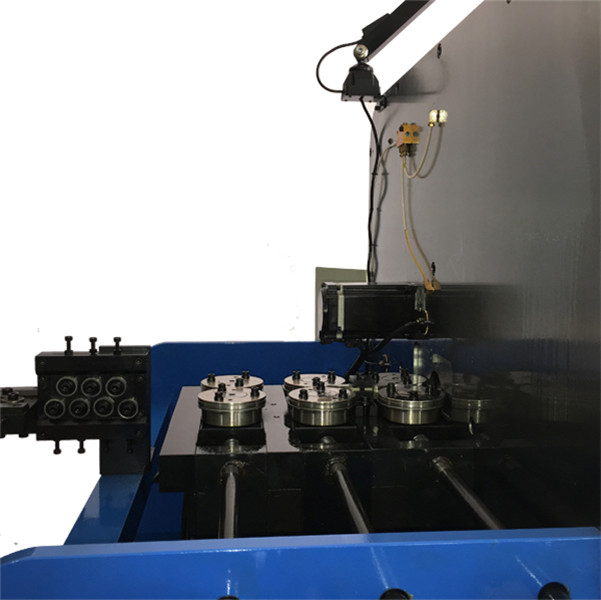

1. XD-CNC20D spring machine consists of cam axis, wire feeding axis, quill rotary and spinner axis.
2. Cam rotation system works from 0.1-359.9°.
3. XD-CNC20D CNCspring machine is equipped with XinDing 3-4 axis spring machine controller. which can save 1000 file, Axis location, feeding data, production speed and production output are updated on the screen.
Product Range:
This CNC spring machine manufacture various types of ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.
Sample:
Technical Parameter:
| Model: |
XD-CNC20E |
|
Wire diameter: |
φ0.3～2.3mm |
|
Axes: |
3-4 axes |
|
Maximum Outside Diameter: |
40mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed: |
200m/min |
|
Memory Number: |
1000pcs |
|
Wire Feed Servo Motor: |
2.7kw |
|
Cam Servo Motor: |
2.7kw |
|
Quin Servo Motor: |
0.75kw |
|
Power AC: |
3-phase 380v |
|
Dimensions (L*D*H): |
1400X550X1600mm |
|
Wooden Case Dimension: |
1600x600x1700mm |
|
Machine Weight: |
900kg |
|
Gross Weight: |
950kg |
