XD-1000 Wire Feeding Machine
Description：The wire feeding speed can be automatically adjusted during working, work in accordance with speed of main spring machine.
Details

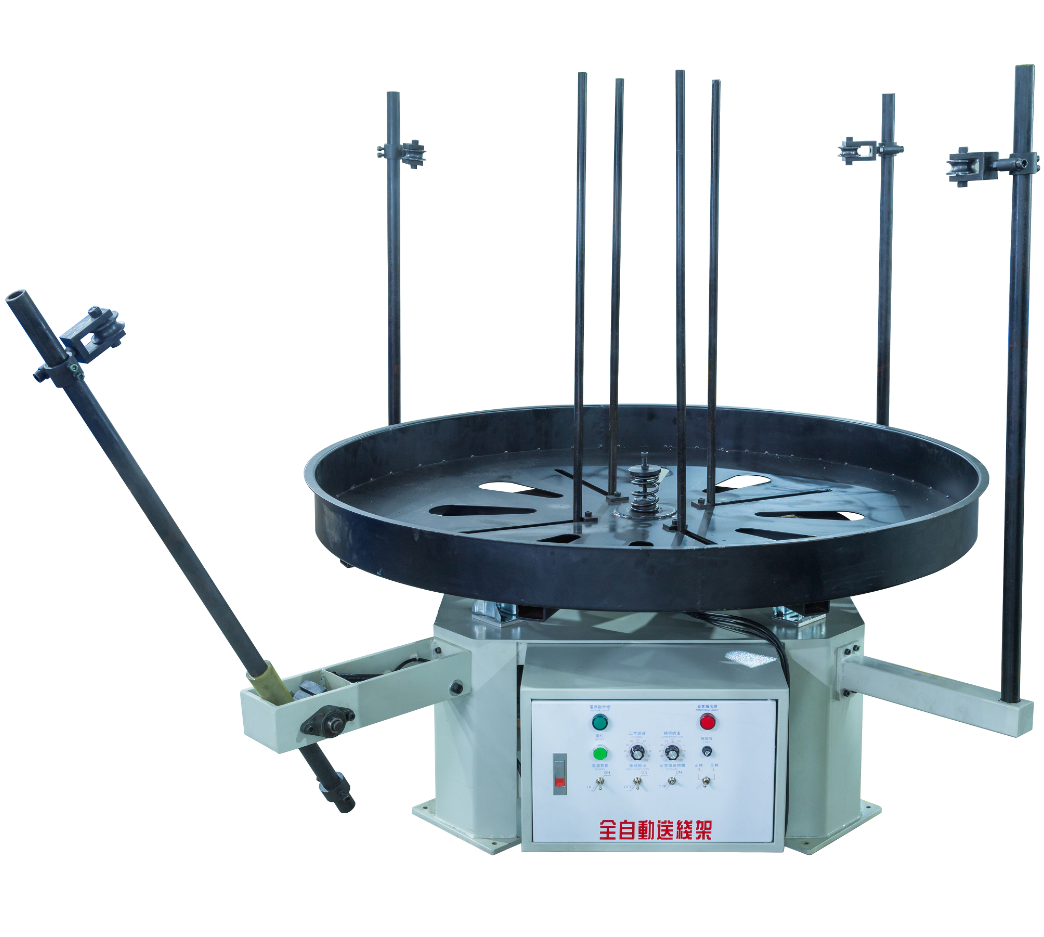

Wire Feeding Machine (Decoiler)
Fully automatic wire feeding machine is applied with the CNC spring machine.
The wire feeding speed can be automatically adjusted during working, which can make the speed of spring making machine and wire feeding machine synchronize.
The machine will alarm and stop working automatically in case of faults, such as the kinking of wire.
It is stable in performance and durable.
Specification:
|
Model |
XD-1000 |
|
Max Capacity of load |
1000KG |
|
Max Speed Of Table |
50rpm |
|
Diameter Of Table |
2200mm |
|
Motor |
1.8kw |
|
Dimensions |
2800 * 2100 * 1300 mm |
|
Weight |
500KG |
