Details

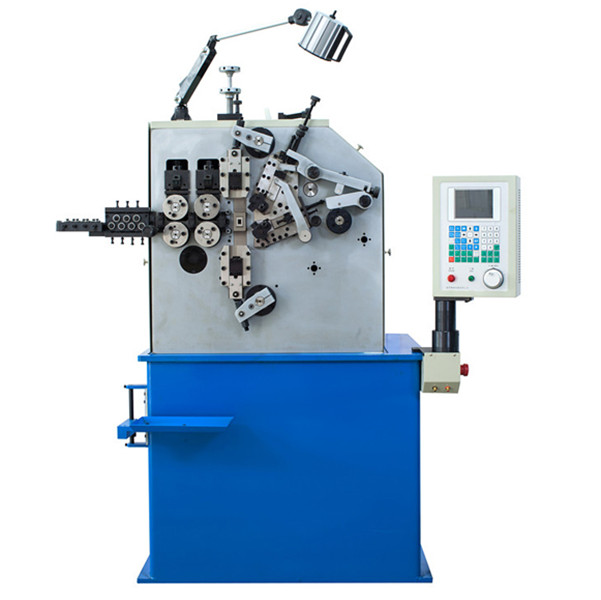

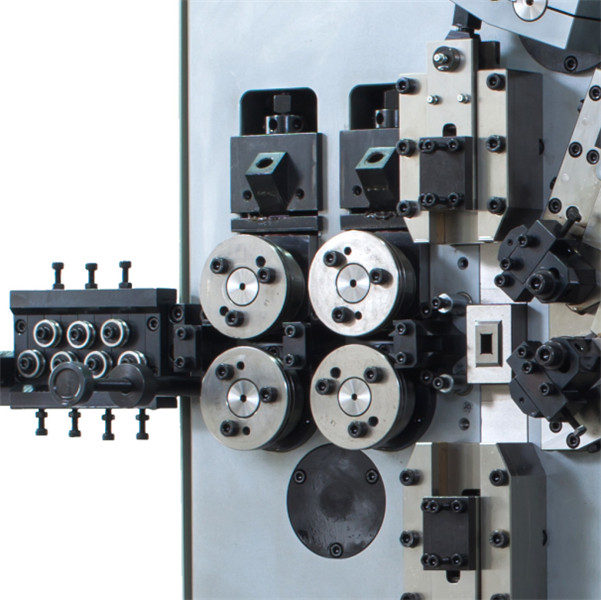

1. XD-226 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis.
2. 5.7" screen display,easy to operate.
3. Cam can be moved clockwisely and anti –clockwisely, wire feed length can be changed while running the machine.
4. Computer automatically detect temperature of the motor and slow down running speed to protect the motor from overheating.
5. Compute can automatically decelerate when the probe should be used.
6. Prodution speed can be increased or decreased at any time of running the machine.
7. Optional accessories: torsion device, oil seal device, pneumatic sensor device, spring length gauge.

Product Range:

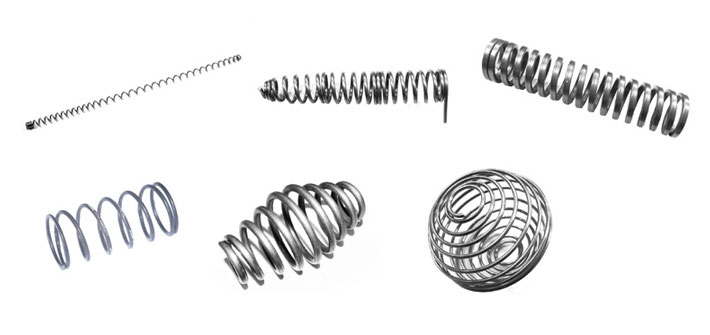

This compression spring machine can make various compression springs, wire coil, oil seal springs, taper springs, double-taper springs, safe springs, extension spring, clip spring as well as simple wire moldings.

Sample:

Technical Parameter
