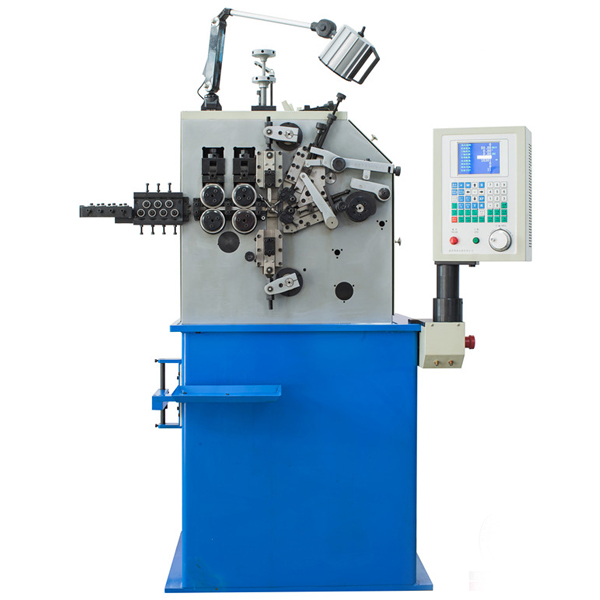

XD-220 Spring Machine
Description：XD-220 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. The spring machine’s two axes can act independently of synchronously from program request.
Details
1. XD-220 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. the spring machine’s two axes can operate independently of synchronously by command from its computer program.
2. 5.7" control panel ,easy to operate,
3. Cam can be moved clockwise or anti –clockwise:wire feed length can be changed while running the machine.
4. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating,
5. Computer can automatically decelerate according to the timing when the probe should be used,
6. Prodution speed can be increased or decreased at any ting running the machine,
7. Convenient mechanization, high speed and precision.
8. Optional accessories: Torsion device, oil seal device, pneumatic sensor device, length gauge.
Product Range:
This compression spring machine make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire forms.

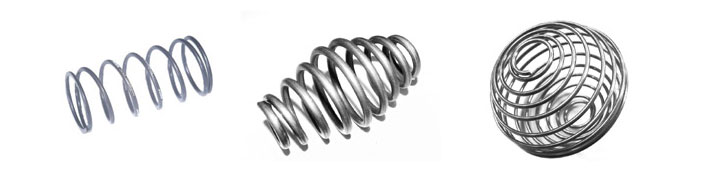

Sample:
Technical Parameter
| Model: |
XD-220 |
|
Wire diameter: |
φ0.5～2.0mm |
|
Axes: |
2-3 axes |
|
Maximum Outside Diameter: |
45mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
300pcs/min |
|
Feed Speed: |
550m/min |
|
Memory Number: |
1000pcs |
|
Wire Feed Servo Motor: |
2.7kw |
|
Cam Servo Motor: |
2.7kw |
|
Power AC: |
3-phase 380v |
|
Dimensions (L*D*H): |
900X850X1600mm |
|
Wooden Case Dimensions: |
1100x1100x1600mm |
|
Machine Weight: |
800kg |
|
Gross Weight: |
850kg |
