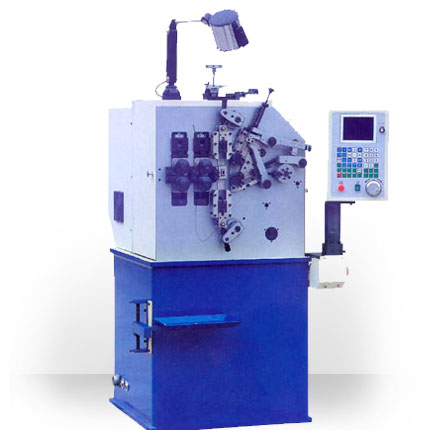

XD-216 Spring Machine
Description：XD-CNC216 compression spring machine is a 2-axis spring machine which has a wire feeding axis and a cam axis. it works amazing precision!
Details:
1. Servo motion system and servo drive controlled
2. 5.7" screen display, easy to operate
3. Cam move clockwisely and anti –clockwisely, wire feed length can be changed while machine working.
4. Computer automatically detect temperature of the motor and slow down running speed to protect the motor from overheating.
5. Computer automatically decelerate according to the timing when the probe should be used.
6. Prodution speed can be increased or decreased at any time of running the machine.
7. Convenient mechniacal operation, high precision.
8. Optional accessories: Torsion device, oil seal device, pneumatic sensor device, spring length gauge.
Product Range:
The compression spring machine make various types of compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as simple wire forming.
Sample:
Technical Parameter:
| Model: | XD-216 |
| Wire diameter: | φ0.35～1.6 mm |
| Axes: | 2-3 axes |
| Maximum Outside Diameter: | 45 mm |
| Maximum Feeding Length: | unlimited |
| Maximum Manufacture Speed: | 300pcs/min |
| Feed Speed: | 450m/min |
| Memory Number: | 1000pcs |
| Wire Feed Servo Motor: | 2.7kw |
| Cam Servo Motor: | 2.7kw |
| Power AC: | 3-Phase 220v |
| Dimensions (L*D*H): | 900X850X1600mm |
| Wooden Case Dimensions: | 1100x1100x1600mm |
| Machine Weight: | 800kg |
| Gross Weight: | 850kg |
